Name: Cool White 15000-20000K 3V 3528 SMD 120 Degree 9-11LM LED CHIP
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-3528W150A9-1S
Price: 12.20 USD
Availability: InStock

제품 세부 정보

원래 장소: 중국

브랜드 이름: HuanYu Dream

인증: RoHS

모델 번호: HY-3528W150A9-1S

지불 및 배송 조건

최소 주문 수량: 2000개

가격: 협상 가능

포장 세부 사항: 2000pcs/릴

배달 시간: 7-9 일

지불 조건: T/T,페이팔,알리페이

공급 능력: 500kpcs/day

가장 좋은 가격 을 구하라

제품 세부 정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                3528 SMD LED chip cool white, 3V 3528 SMD LED, 15000-20000K LED chip 120 degree


유형:	HY-3528W150A9-1S	CCT:	15000-20000K
전압:	2.8-3.0V	만약에:	20mA
루멘:	9-11LM	맞춤형:	사용 가능

유형:	HY-3528W150A9-1S
CCT:	15000-20000K
전압:	2.8-3.0V
만약에:	20mA
루멘:	9-11LM
맞춤형:	사용 가능

Cool White 15000-20000K 3V 3528 SMD 120 Degree 9-11LM LED CHIP

Product Overview

Cool White 15000-20000K 3V 3528 SMD 120 Degree 9-11LM LED CHIP

Technical Specifications

Attribute	Value
Types	HY-3528W150A9-1S
CCT	15000-20000K
Voltage	2.8-3.0V
IF	20mA
Lumens	9-11lm
Customized	Available

Key Features

Color Temperature Type: Cool White, color temperature range 15000-20000K
Operating Voltage: 3V low-voltage drive, suitable for portable or low-voltage circuit designs
Package Size: Standard 3528 SMD package (3.5mm long × 2.8mm wide)
Emitting Angle: 120-degree wide-angle light emission, large illumination coverage, no obvious dark areas
Luminous Flux: 9-11 lumens (lm) per chip

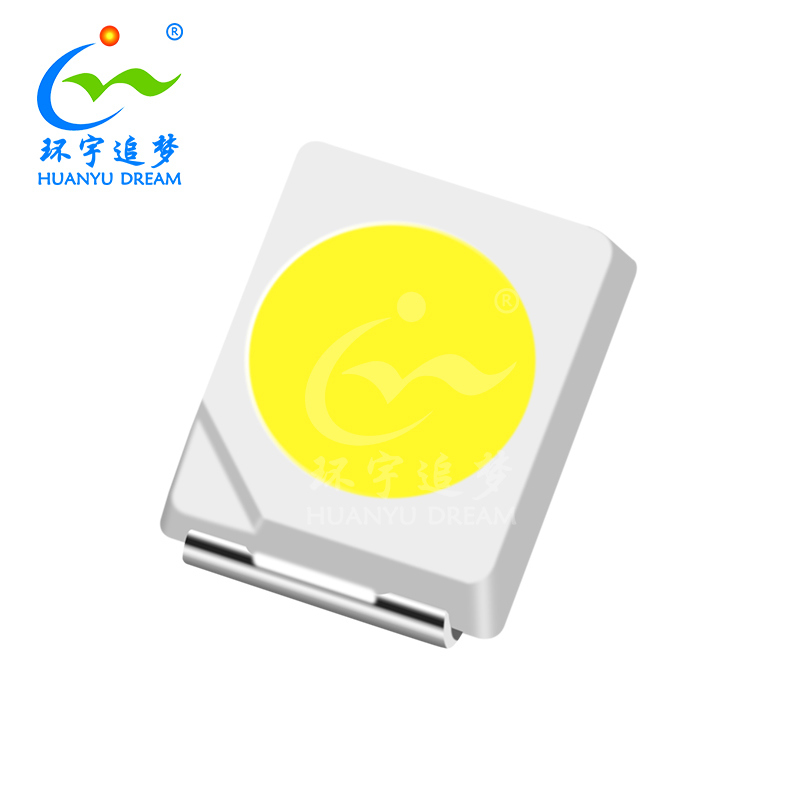

Product Image

Applications

Special Atmosphere and Decorative Lighting: Suitable for decorative lighting scenarios requiring a cool, futuristic atmosphere, such as bars, KTVs, and gaming rooms
Industrial Inspection and Auxiliary Lighting: Can be used with industrial endoscopes or circuit board inspection equipment, utilizing high color temperature to enhance the contrast of scratches and dust
Aquarium or Plant Supplemental Lighting: Can be used in special cases as supplemental lighting for deep-sea coral tanks or specific plant growth stages
DIY Electronics and Model Modification: Suitable for embedding DIY electronic projects, remote control models, or futuristic figurines into homemade lighting devices
Optical Experiments and Teaching Demonstrations: Can be used in middle school or university physics experiments to demonstrate color temperature and LED photoelectric characteristics
Portable Night Light or Emergency Light: Can be made into a 3V battery-powered portable cool-color night light or emergency lighting tool

For more information about this LED chip, please contact our technical team for detailed specifications and customization options.
