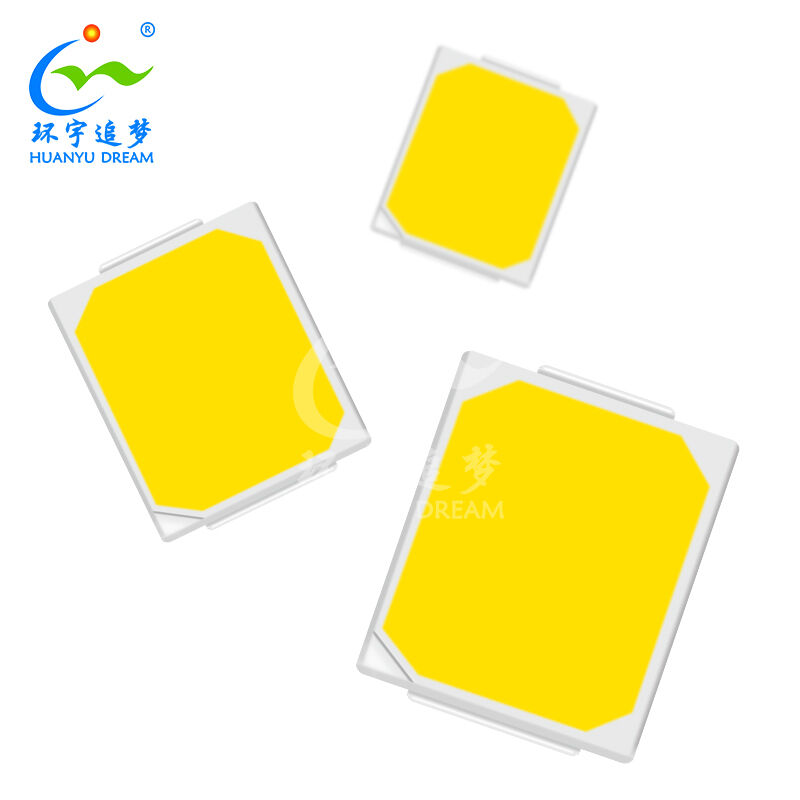

High Light Efficiency 2835 185LM/W 150mA White 6V SMD LED CHIP

Name: High Light Efficiency 2835 185LM/W 150mA White 6V SMD LED CHIP
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: SMD 2835 LED 칩
Price: 12.20 USD
Availability: InStock

제품 세부 정보

원래 장소: 중국

브랜드 이름: HuanYu Dream

인증: Rohs

모델 번호: SMD 2835 LED 칩

지불 및 배송 조건

최소 주문 수량: 4000 PC

가격: 협상 가능

포장 세부 사항: 4000pcs/릴

배달 시간: 7-9 일

지불 조건: T/T,페이팔,알리페이

공급 능력: 500kpcs/day

가장 좋은 가격 을 구하라

제품 세부 정보

제품 설명

강조하다:

패키지:	HY-2835W60L165-6V2S	힘:	1W
전압:	6.0-6.2V	현재의:	150mA
조명 효율성:	185LM/W@150mA	색상:	하얀색
시야각(°):	120°	보증:	3년
CCT:	6000-6500K

패키지:	HY-2835W60L165-6V2S
힘:	1W
전압:	6.0-6.2V
현재의:	150mA
조명 효율성:	185LM/W@150mA
색상:	하얀색
시야각(°):	120°
보증:	3년
CCT:	6000-6500K

High Light Efficiency 2835 185LM/W 150mA White 6V SMD LED CHIP

This 2835 SMD LED achieves an ultra-high luminous efficacy of 185 lm/W at a current of 150 mA; its 6V forward voltage design effectively lowers the operating current, thereby reducing driver losses and enhancing circuit reliability. As a high-brightness white light source, it delivers uniform, high-quality illumination—making it an ideal replacement for traditional light sources, particularly in commercial, office, and residential indoor settings that demand high standards for brightness and energy efficiency.

Product Specifications

Package	HY-2835W60L165-6V2S
Power	1W
Voltage	6.0-6.2V
Current	150mA
Light Efficiency	185LM/W@150mA
Color	White
Ra	70
Viewing Angle	120°
Warranty	3-years

Dimensions

Units: mm; mark indicates cathode

High Light Efficiency 2835 185LM/W 150mA White 6V SMD LED CHIP 0

Applications

1.Commercial Lighting: Downlights and grille lights for shopping malls and supermarkets; high luminous efficacy and reduced electricity costs.

2.Office Lighting: Panel lights for offices and classrooms; uniform illumination, low driver power loss, and stable operation.

3.Residential Lighting: For ceiling lights and LED strips; provides ample brightness and suits slim, lightweight fixture designs.

4.Public Lighting: For areas requiring continuous lighting, such as garages and corridors; outstanding energy efficiency and significant energy savings.

Frequently Asked Questions

Do you support drop shipping and how much is the shippping cost?

Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, and it can be calculated..

How to place an order?

If you want to place an order, please feel free to send us messages. We will reply you with best service and passion ASAP.
