5054 RGBCW 5IN1 SMD LED Chip 1W 3.0-3.2V 60mA

Name: 5054 RGBCW 5IN1 SMD LED Chip 1W 3.0-3.2V 60mA
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5054RGBCW-1W
Price: 12.20 USD
Availability: InStock

제품 세부 정보

Place of Origin: China

브랜드 이름: HuanYu Dream

인증: Rohs

Model Number: HY-5054RGBCW-1W

지불 및 배송 조건

Minimum Order Quantity: Negotiable

가격: 협상 가능

Packaging Details: 1000pcs/Reel

Delivery Time: 7-9 Work Days

Payment Terms: T/T,Paypal,Ali Pay

Supply Ability: 200KKpcs/Month

가장 좋은 가격 을 구하라

제품 세부 정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                5054 RGBCW LED chip, 1W SMD LED, 3.0-3.2V LED chip


Type:	SMD 5054 RGBCW 5IN1 LED CHIP	Power:	1W
Voltage:	2.0-2.2V/3.0-3.2V	Current:	60mA*5
Warranties:	3 years	Lifetime:	50000 hours

Type:	SMD 5054 RGBCW 5IN1 LED CHIP
Power:	1W
Voltage:	2.0-2.2V/3.0-3.2V
Current:	60mA*5
Warranties:	3 years
Lifetime:	50000 hours

5054 RGBCW 5IN1 SMD LED Chip 1W 3.0-3.2V 60mA

Stage Light LED RGBCW 5IN1 SMD 5054 1W 60mA*5 3.0-3.2V LED CHIP

Product Specifications

Attribute	Value
Type	SMD 5054 RGBCW 5IN1 LED CHIP
Power	1W
Voltage	2.0-2.2V/3.0-3.2V
Current	60mA*5
Warranties	3 years
Lifetime	50000 hours

Product Description

This high-density 5054RGBCW LED integrates 1W chips (60mA each) in a single package. It delivers exceptional, vibrant color mixing and brilliant white light output in a compact form factor. Its high power and full spectrum capability make it perfect for demanding architectural accent lighting, commercial displays, and creative decorative applications.

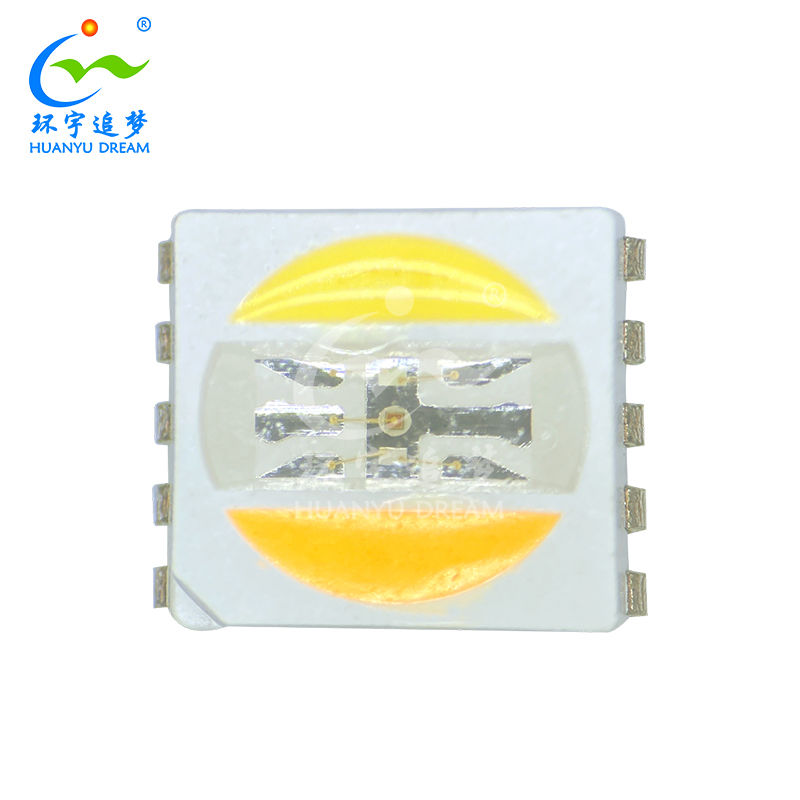

Product Image

Technical Details

Model No.	HY-5054RGBCW-1W
LED Package	5.0mm*5.4mm
Data Color	Red \| Green \| Blue \| White \| White
Wave Length	620nm-630nm \| 520nm-530nm \| 460nm-465nm \| 3000K \| 6300K
Typical Forward Voltage	2.0-2.2V \| 3.0-3.2V \| 3.0-3.2V \| 3.0-3.2V \| 3.0-3.2V
DC Forward Current	60mA*5
Typical Power Dissipation	1W
Emitting Color	RGB \| WW \| CW
Viewing angle	120°
Operating Temperature	-40℃～+100℃
Storage Temperature	-40℃～+100℃

Note: Available in a broad range of CCT (2600-7000K), you can contact us for specific requirements and wavelength.

Applications

Commercial Lighting: Brand flagship stores, window displays, advertising lightboxes
Architectural Lighting: Building outlines, landmark lighting projects
Interior Decor: Home ambient lighting, hotel/bar accent lighting
Creative Projects: Art installations, stage and visual design
